Merkmale
●5-Lead SOT-23and 5-Lead SC-70 Packages
●1 MHz Gain Bandwidth Product
●Supply Voltage: 1.8V to 6.0V
●Supply Current: IQ = 100 µA
●Temperature Range:
- Industrie: -40 Grad bis plus 85 Grad
- Erweitert: -40 Grad bis plus 125 Grad
●90 degree Phase Margin
●Single, Dual and Quad Packages
●Rail-to-Rail Input/Output
Anwendungen
●Automotive
●Portable Equipment
●Battery-Powered Systems
●Photodiode Amplifier
●Notebooks and PDAs
Beschreibung

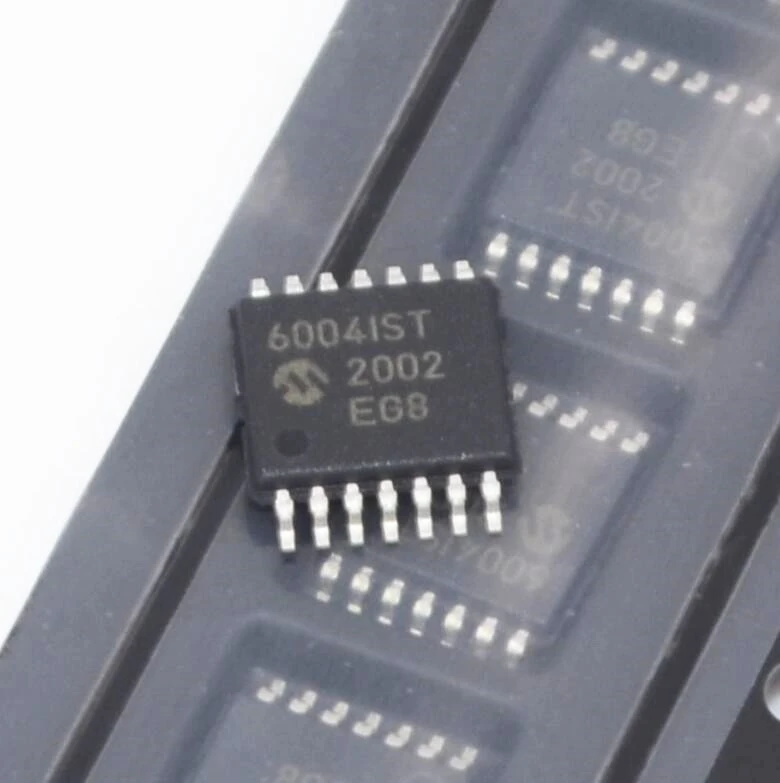

The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product and 90 degree phase margin . It also maintains a 45 degree phase margin with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 µA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD plus 300 mV to VSS – 300 mV. This family of op amps is designed with Microchip's advanced CMOS process.
Die Familie MCP6001/2/4 ist im industriellen und erweiterten Temperaturbereich mit einem Stromversorgungsbereich von 1,8 V bis 6,0 V erhältlich.
